Butyl Rubber Warm Edge Spacer Bar

Renqiu City Xinjian Metal Products Co., Ltd. is one of the most reliable manufacturers and suppliers of butyl rubber warm edge spacer bar in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale customized butyl rubber warm edge spacer bar from our factory. Also, free sample is available.

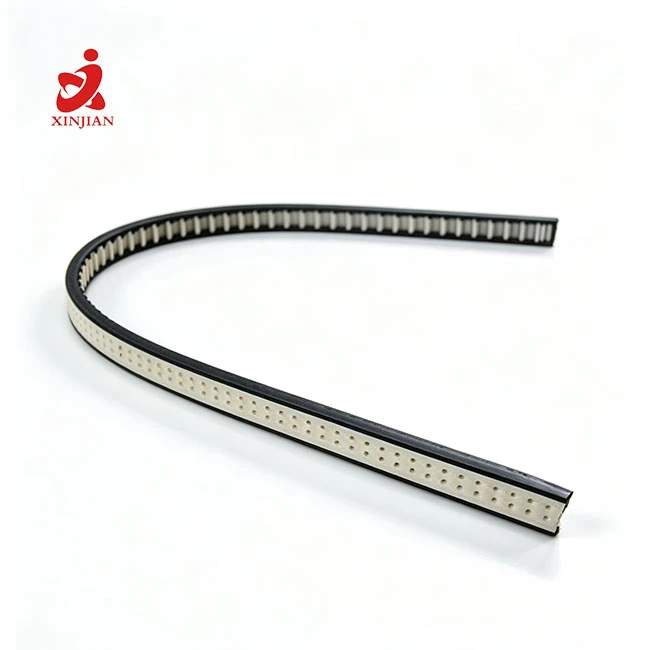

Butyl Rubber Warm Edge Spacer Bar uses butyl rubber as its core substrate with no aluminum metal skeleton. It integrates sealing and molecular sieve cavity into one body, serving as a dedicated warm edge spacer for insulating glass units (IGUs). Used in double and triple glazing, it reduces heat transfer at the glass edge, minimizes edge condensation, and improves overall window energy efficiency. The product comes with inherent sealing performance and works together with secondary sealant to complete the IGU sealing.

Product Advantages
1. True warm edge with low thermal conductivity: No aluminum metal skeleton significantly reduces the heat transfer coefficient at the glass edge, notably decreasing edge condensation and fogging, and improving overall thermal insulation performance of doors and windows.
2. Integrated butyl sealing: The body itself is butyl rubber, not an aluminum strip coated with butyl adhesive. Primary seal is formed in one piece for stronger sealing stability.
3. Convenient bending: Can be bent on site, reducing the use of corner keys and minimizing potential leak points in IGUs.
4. Built-in molecular sieve cavity: Integrated desiccant chamber continuously absorbs moisture inside the IGU cavity, extending service life and delaying fogging.
5. Aging and UV resistance: Butyl rubber substrate resists aging and ozone, does not harden or crack easily, suitable for long-term outdoor building use.
6. Compatible with triple glazing, suitable for high-efficiency passive houses and low-energy building projects.

Applications
1. Curtain wall IGUs: Energy-efficient insulating glass for office buildings and commercial curtain walls.
2. Door and window systems: High-end energy-efficient windows, passive houses, villa thermal break aluminum and uPVC windows.
3. Triple and multi-layer IGUs: Triple glazing and composite IGUs with high thermal insulation requirements.
4. Rail transit glass: Insulating glass for trains and bus windows.
5. Skylights and sunrooms: Roof glazing IGUs addressing edge condensation issues.

Size Selection Guide

*Note: When selecting, confirm the IGU cavity width; the spacer bar width equals the cavity width. Also verify compatibility with the single-pane glass thickness.

Installation Instructions
1. Glass surface must be dry, dust-free, and oil-free to ensure proper adhesion of the spacer bar.
2. Manual or machine bending is acceptable. Follow specified bending radius to avoid cracking the spacer body.
3. After bending, attach to the first glass pane, fill with molecular sieve, then close with the second glass pane.
4. A two-component silicone sealant must be applied as secondary seal. Butyl rubber serves only as the primary seal and cannot achieve complete sealing alone.
5. Recommended processing environment temperature: 10–35°C; humidity should not be too high.
6. Cutting tools must be sharp to produce clean cuts and prevent burrs that could affect sealing.

Storage Requirements
1. Store in a cool, dry warehouse away from direct sunlight and heat sources.
2. Keep away from solvents and oils to prevent butyl rubber erosion.
3. Seal unused product properly to prevent premature moisture absorption by the molecular sieve.
4. Do not stack with heavy weight to avoid deformation. Storage temperature: 5–30°C.
5. Use within shelf life. Once opened, use promptly to prevent desiccant from absorbing airborne moisture.
